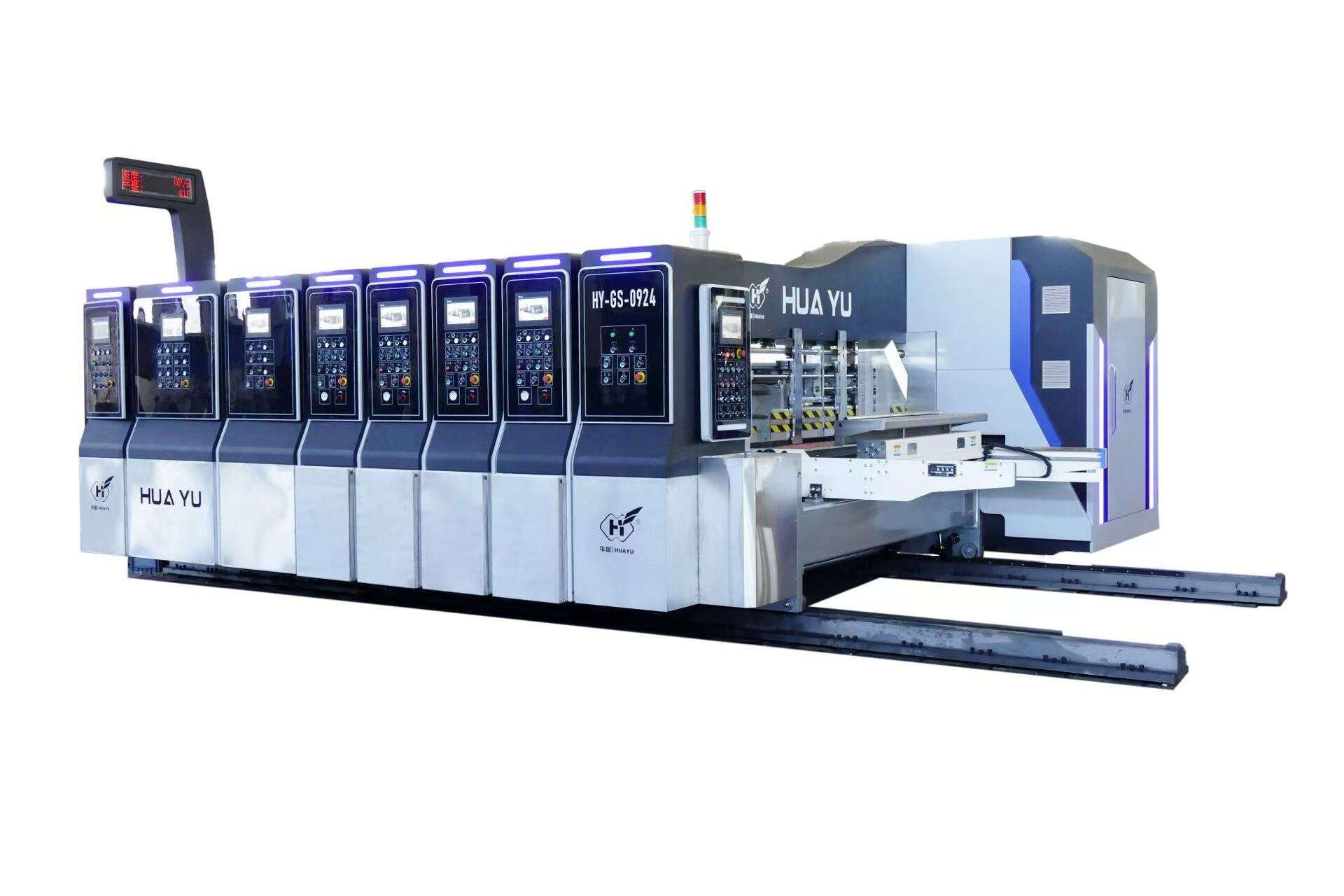

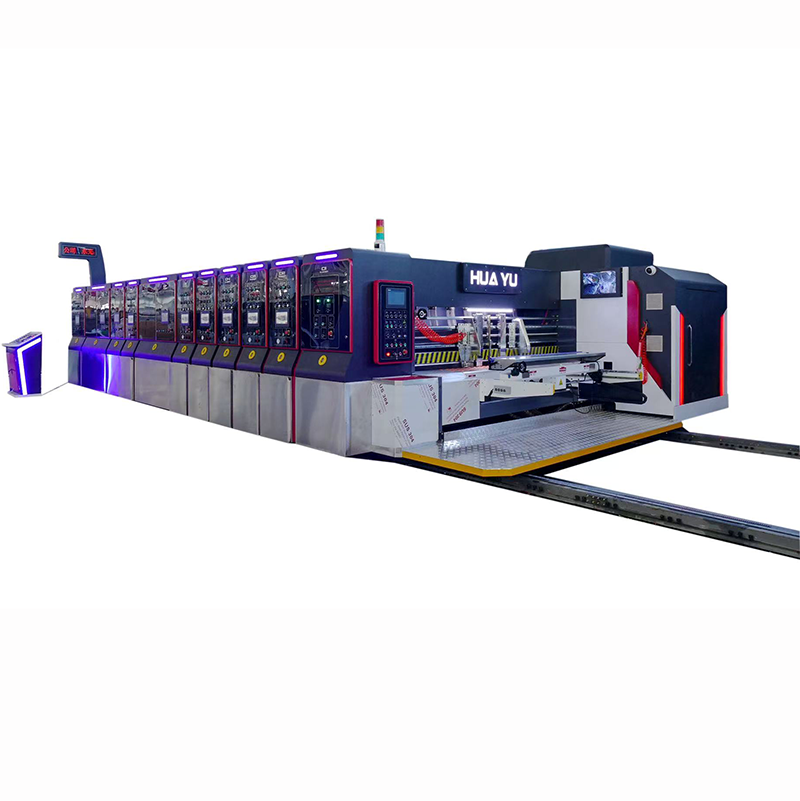

Flexo Printer Slotter Die Cutter

Flexo Printer Slotter Die Cutter

● Flexo Printer Slotter Die Cutter,Roller-mounted printing features a rational structure, easy adjustment, and intuitive viewing of the printed surface.
● Adjustable leading edge paper feed allows electronic adjustment of paper feed stroke to reduce pressure on the paper roller.
● Touchscreen PLC control includes automatic counting, speed display, automatic plate lift and lowering, phase adjustment, and order storage.
● Plate cleaning memory: After stopping the machine for plate cleaning, the memory automatically resets, eliminating the need for retesting.
● Flexo Printer Slotter Die Cutter,Main unit startup protection: If the entire machine is not locked, the machine cannot be started, preventing misoperation.
● Main control electronics are from renowned manufacturers such as Siemens, Schneider, and Omron.
● The machine features a modular mobile structure, electrically driven by a reducer. A continuous alarm ensures operator and maintenance personnel safety, and pneumatic wedge-type automatic locking is provided.
● Flexo Printer Slotter Die Cutter,The main power source is a variable frequency drive, offering energy-saving features.
● All drive rollers are made of high-quality steel, quenched and tempered, hard chrome plated, and surface-ground. ● The main drive gear is heat-treated and ground from 20CrMnTi alloy steel to grade 6 precision, and is connected to the shaft using an expansion sleeve.
● Flexo Printer Slotter Die Cutter,Bearings are sourced from Harbin, Luoyang, and Wafangdian.
● All passive rollers utilize a high-precision bearing cross-slider mechanism for transmission.
● Flexo Printer Slotter Die Cutter,The operator station and operator-side guard are separated for easy maintenance of the gearbox interior.
● The drive gears are lubricated by an oil pump; an automatic level-balancing device maintains the same oil level in each unit.
● Flexo Printer Slotter Die Cutter,Each unit is equipped with a pneumatic brake to ensure accurate resetting of the main drive meshing point and phase after the equipment is disassembled.
● The paper feed gap scale is self-locking and adjustable for a bipolar, parallel-axis worm gearbox.
● Flexo Printer Slotter Die Cutter,Each phase is a three-position planetary gear mechanism driven by a brake motor. A dedicated phase meter displays the adjusted value. Phase zeroing memory and reset are available.
● Emergency stop protection: An emergency stop switch provides an additional layer of safety.
● A zeroing device facilitates quick plate alignment.
● Flexo Printer Slotter Die Cutter,Multi-channel phase control for more convenient operation.
